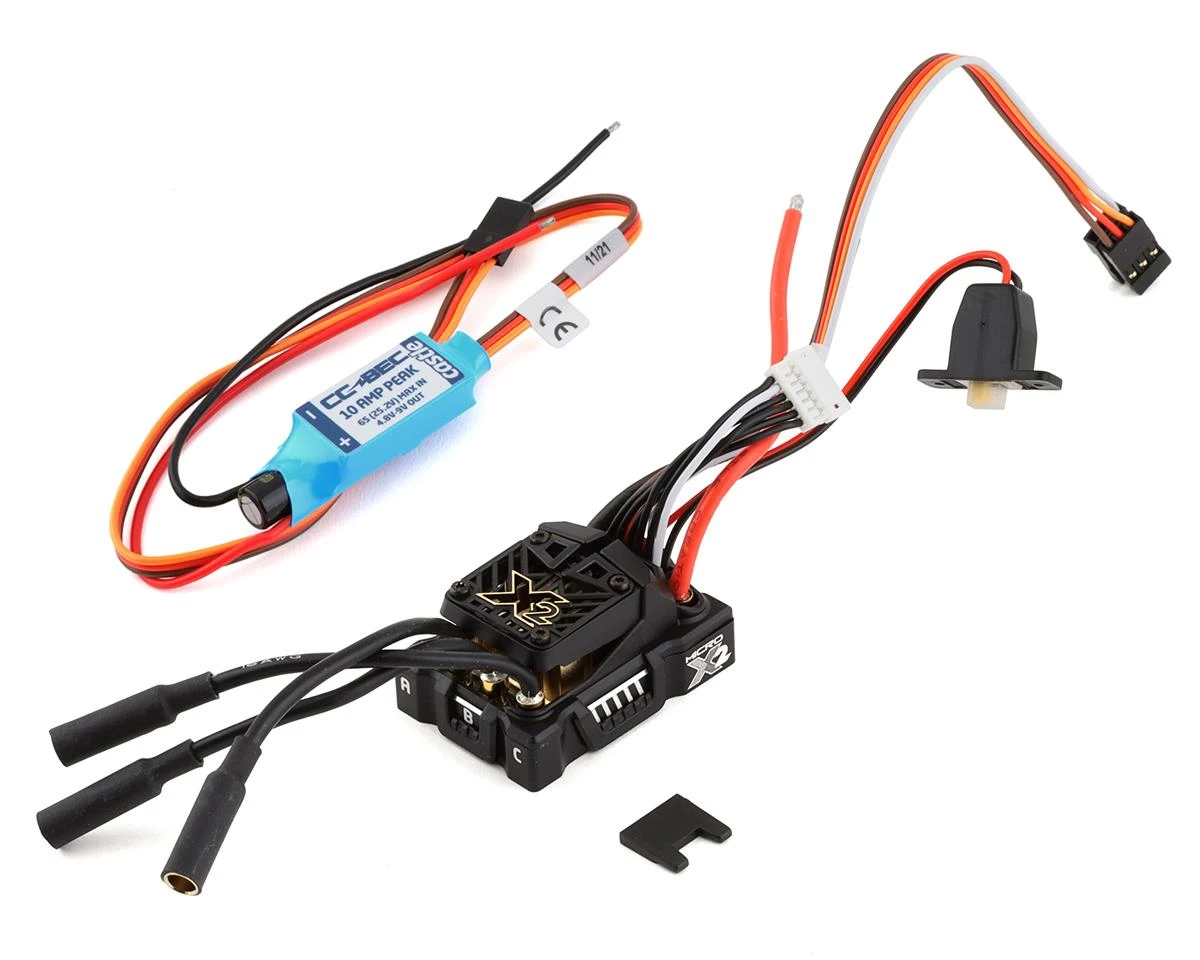

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless ESC w/CSE010-0004-00 10A BEC

Original price was: $89.95.Current price is: $53.97.

Buy with confidence, backed by quality.

Hassle-Free Payments

Protecting Your Payment Information

Quality at its Finest

The Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless ESC is a refresh of the popular Mamba Micro X. The Mamba Micro X2 ESC increases the maximum input voltage to 4s, with added DATA LOGGING and CRYO-DRIVE TECHNOLOGY that allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and offers SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing).

NOTE: The Mamba Micro X2 will no longer include an internal BEC unit. Included with the Micro X2 ESC will be an upgraded external 10-Amp adjustable BEC (CSE010-0004-00). This external BEC upgrade will be supplied at no additional charge.

Features:

Input Voltage range 2S-4S
Upgraded external 10-Amp adjustable BEC included (CSE010-0004-00)
Waterproof design
Sensored Motor capable (with optional sensor harness)
Convenient transmitter programming for six common adjustable settings
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake
Audible Alerts that will notify you of possible issues with calibrations and error conditions
Designed and manufactured in Olathe, Kansas and is backed by manufacturer 1-year warranty

Specifications:

Input Voltage Range: 2S-4S LiPo (16.8V Max)

BEC: External 10-Amp adjustable BEC (CSE010-0004-00)

Operating Environment: Waterproof* design allows for use in nearly any environment

Brake: Proportional

Reversible: Yes, but may be disabled

On/Off Switch: Yes, waterproof

Cooling Fan: Not included

Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64″ x 1.16″ x .84″)

Weight (with wires): 1.66 oz / 47 grams

Connectors: 3.5 mm bullets

Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 2.25lbs.

Recommended Motors:

Castle 0808 4100Kv: Max Cells: 3S Lipo or 8 NiMH

Castle 0808 5300Kv: Max Cells: 3S Lipo or 8 NiMH

Castle 0808 8200Kv: Max Cells: 2S Lipo or 8 NiMH

Max. Recommended Vehicle Weight: 2.25 lbs, with batteries, ready-to-run

Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)

Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.

Product Use Statements:

Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. Castle recommends using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. Castle recommends a high current connector rated for at least 40 amps.
Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, Castle suggests users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

Includes:
