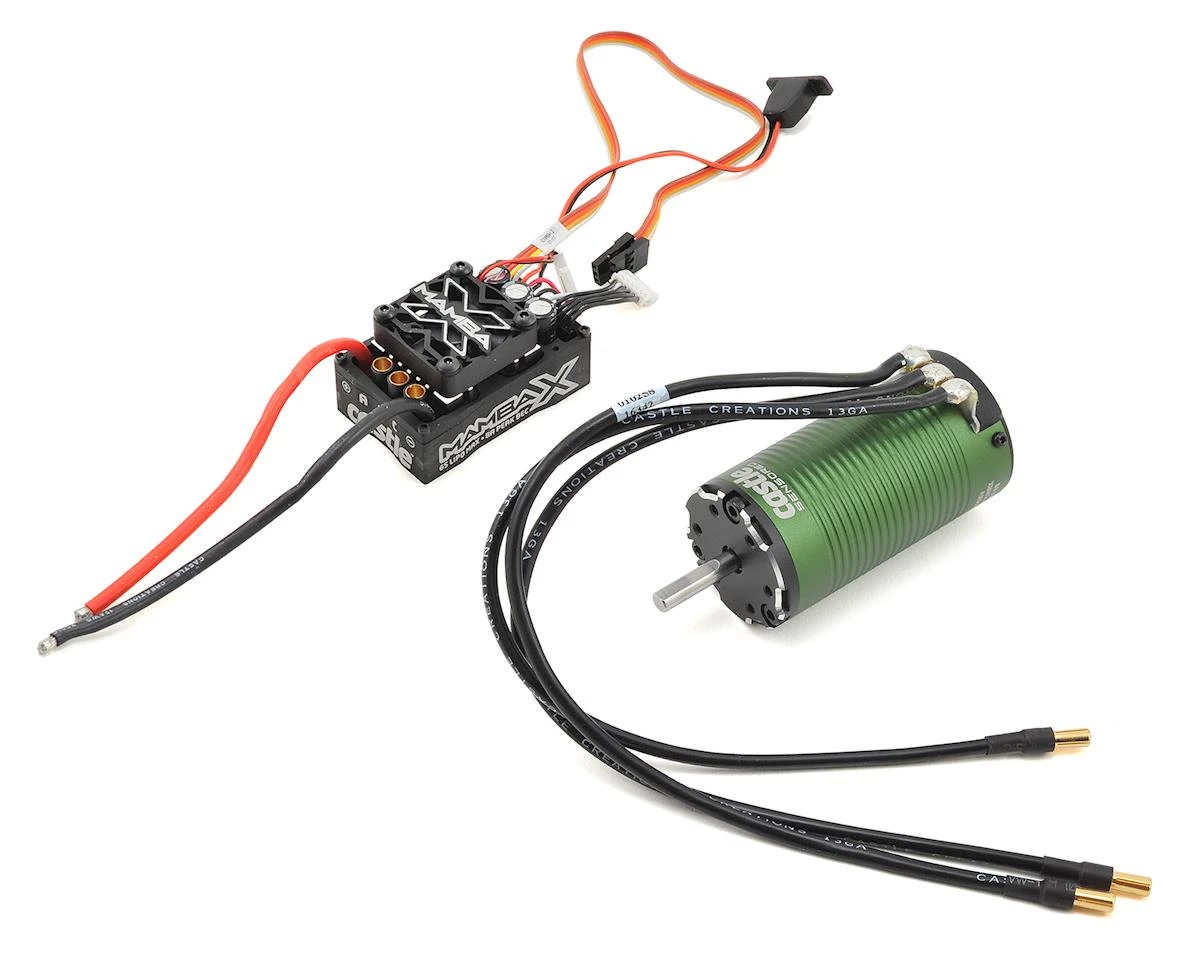

The Castle Creations Mamba X SCT Waterproof 1/10 Brushless Combo includes the Mamba X, with the awesome 1415 Sensored motor to create a all in one system perfect for 2WD and 4WD Short Course trucks weighing up to 6.5lbs running on a 3s or 4s LiPo.

The Mamba X is going to shake things up. Extremely versatile, and capable of powering a wide variety of applications and vehicles the Mamba X is ideal for racing at the track with your 2wd buggy, bashing through mud puddles in your monster truck, or navigating a hardcore trail with your crawler. The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale race buggies.

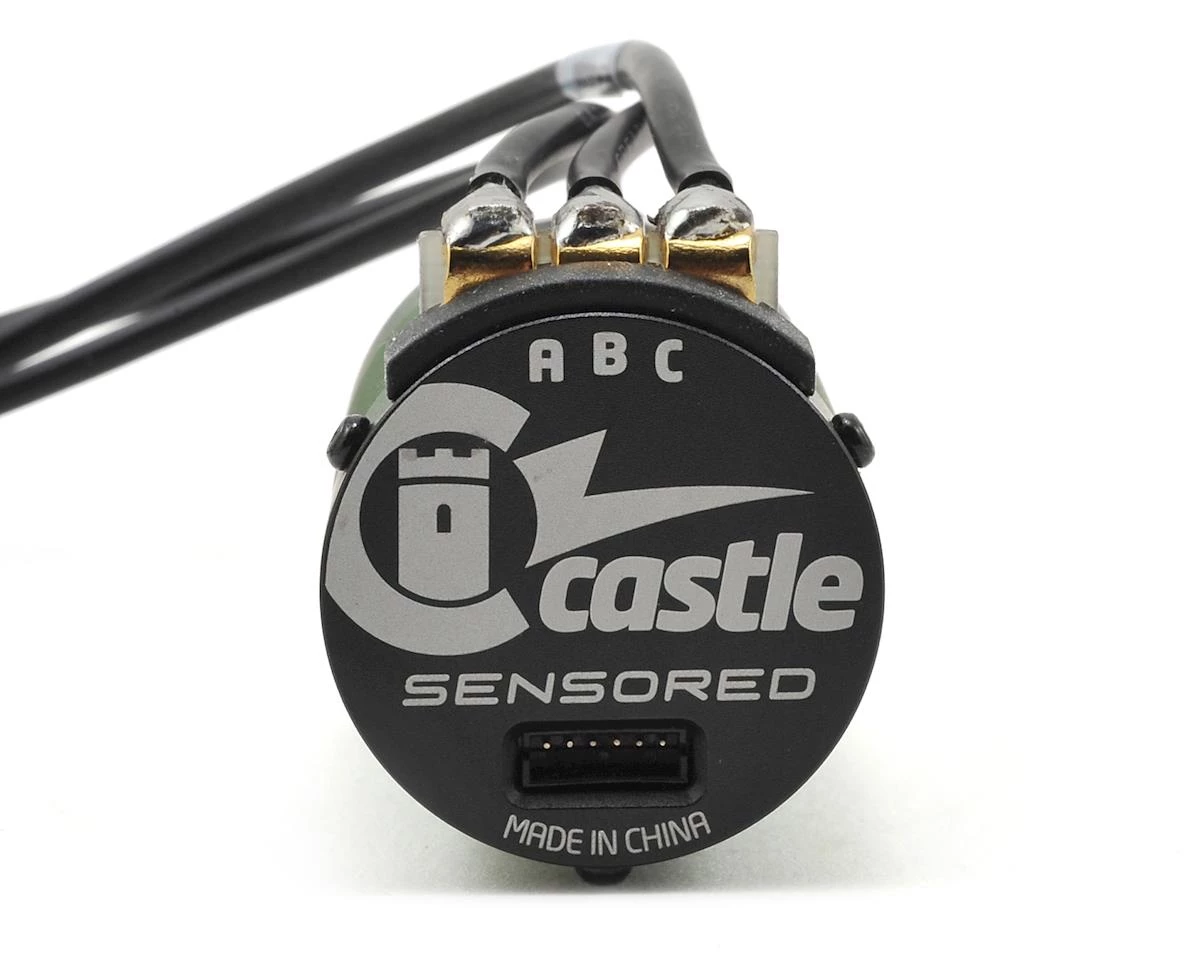

Castle Creations 1415 Sensored 4-Pole Brushless Motors combine rotor position sensor technology with an improved high power and high efficiency motor design to deliver ultra smooth startup, precise low speed control, predictable power delivery, incredible torque, and lightning fast response. Through the use of Castle’s Smart Sense technology, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup, and allows the 1406 to deliver PRECISE throttle control and BUTTERY SMOOTH starts – with the RAW POWER and LONGER RUN TIMES that Castle motors are known for.

Features:

ESC

Wide 2S to 6S input voltage range

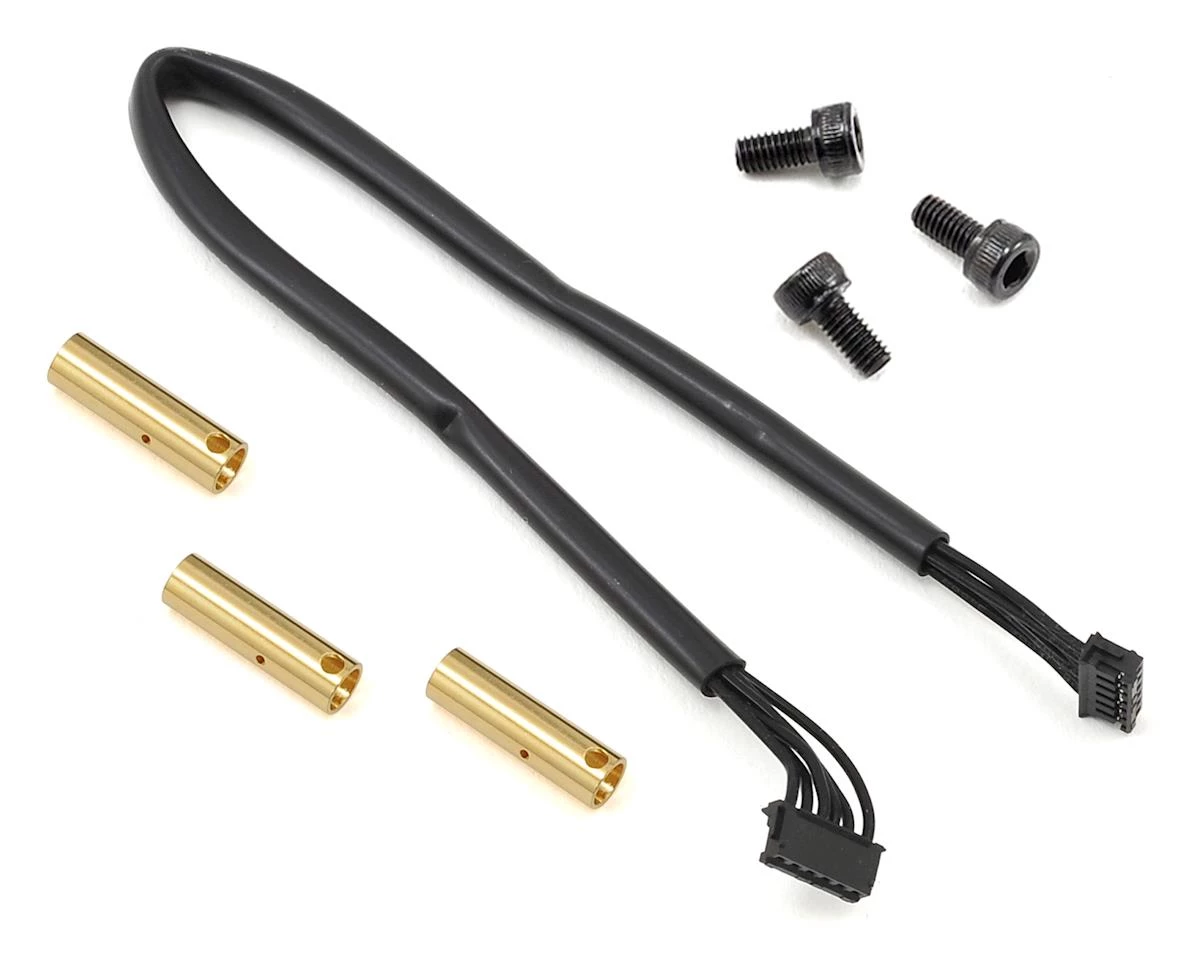

Sensored Motor Support (Castle X-Series Sensor Harness Included)
Waterproof
8A Adjustable BEC (5.25V-8.0V)
Data-logging
Rugged CNC Aluminum Case
Castle Link Programming Support
SmartSense™
Integrated Capacitors
Removable 30mm Cooling Fan
Integrated 4mm Bullet Connectors
12 AWG Power Wires
Waterproof Switch
Audible Alerts
The Mamba X is proudly designed and manufactured in Olathe, Kansas
Backed by Castle Creations’ 1-year warranty and unparalleled “make-it-right” customer support

Motor

4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT
Oversized gold plated solder tabs for LESS RESISTANCE and easy soldering
QUIETSENSE^™ Technology shields magnetic field noise generated from the motor coils and keeps motor and ESC in sync at all times
HIGHER PRECISION and MORE EFFICIENT startups
OPTIMIZED design eliminates the need for mechanical timing adjustments
Sensor alignment method delivers uniform timing and torque in both directions, automatically
REBUILDABLE design allows users to replace front end bell with bearings or rotors with shaft
ROAR standard sensor port and labeled connections
High strength 180°C neodymium sintered magnets
High quality, temperature-stabilized sensors
High-purity, high-temperature copper windings
Hardened stainless steel shaft
13 AWG high strand wire with silicone insulation
Kevlar wrapped rotor
6061-T6 Billet aluminum heatsink can
High RPM NMB oversized bearings
High quality 0.2mm steel laminations
Low resistance gold plated bullet connectors

Specifications:

ESC

Input Voltage Range: 2S LiPo (7.4V) to 6S LiPo (25.2V)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size (LxWxH): 2.14×1.39×1.18″ (54.4×35.2×30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection.
Items Needed for Operation: Battery Connector
Application Guidelines: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 9bs/4kg
Recommended Motors: Castle 1406, 1410 and 1415 Sensored motors
Max. Recommended Vehicle Weight: Less than 9bs/4kg, with batteries, ready-to-run
Telemetry Link Capable: Yes
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.

Motor

Input Voltage Range: 3-4S LiPo
Kv: 2400
Max. RPM: 75,000
Length: 69.5mm
Diameter: 36mm
Weight (w/wires): 319g / 11.3oz
Shaft Length: 21mm
Shaft Diameter: 0.197″ (5mm)
Mounting Hole: M3 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors
Recommended ESC (s): Combo includes Mamba X ESC.
Recommended Applications: 2WD and 4WD Short Course trucks weighing up to 6.5lbs running on a 3s or 4s LiPo with included 1415 – 2400kv sensored motor.
Running Modes: SMARTSENSE™, Sensored, Sensorless

Product Use Statements:

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, Castle suggests users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Tech Notes:

Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack’s suitability for a brushless application. Recommended battery capacity for 1:10th and 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Applying voltages higher than 25.2V will cause irreparable damage to ESC.
We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs
